How to order?
- First you need to choose and order Roll Base as per your roll dimensions
- Also you need to order Periphery Design separately, pay once for each set of rolls.
- After order is completed, you can send us your corrugating rolls drawing, or download the Identification form and send back to us.
- If needed, we can send you drawing for typical corrugator models for your confirmation after you have placed order.
- For further technical assistance, please contact our tech help team.

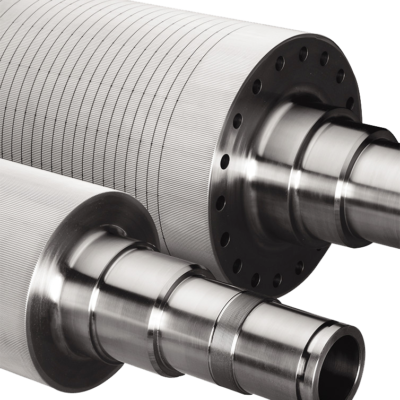

This Periphery Heating Carbide Tungsten OEM corrugating rolls can compete with any top brands in the world and fits almost all kinds of single facer machines configured periphery heating design. An excellent surface smoothness and hardening of tungsten carbide coating are assurance of super long roll life span as well as perfect flute forming. The periphery heating technology allows rapid temperature responding and avoids condensate build up, that significantly meets modern high speed single facer and high quality corrugated boards demands in the changing market.
Only the single facer machine with periphery heating design can fit this type of periphery heating corrugating roll.
Advantages of Periphery Heating:
- Heats up in 5 minutes allows fastest flute changes with cassettes
- 25% longer roll lifespan
- 10% steam energy saving
- Eliminate condensate deposit
- Eliminate roll deformation
- Uniform temperature across roll length
Optimization of Flute Profile
- Up to 5% paper consumption saved
- Up to 5% improvement on boards strength
- Higher profiles stability
- Less vibrations
- Higher speed and constant glue application
Typical Flutes Profiles
Flute | Teeth in 300mm | Pitch (mm) | Height (mm) | T.U.R |
A | 34±2 | 8.3-9.4 | 4.6±0.2 | 1.43-1.62 |
C | 40±2 | 7.2-7.9 | 3.6±0.2 | 1.38-1.55 |
B | 48±2 | 6.0-6.5 | 2.8±0.2 | 1.33-1.51 |
E | 78±2 | 3.8-3.9 | 1.5±0.15 | 1.25-1.41 |
F | 126±4 | 2.3-2.5 | 0.7±0.1 | 1.13-1.27 |
G | 166±4 | 1.8-1.9 | 0.5±0.1 | 1.10-1.26 |
