    Flexo Printing Supplies / Anilox Rolls & Doctor Blades
    Filter
    Add to wishlist
    Add to wishlist

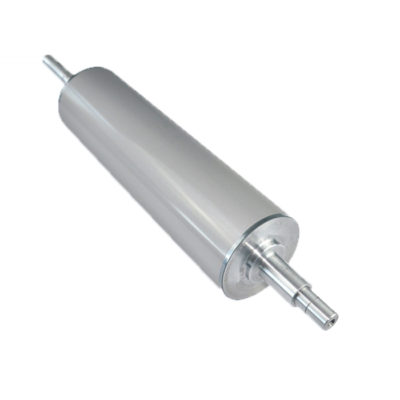

    Chromed Anilox Roll, Hard Chrome Plated Anilox Roll

    CorroGo #: PGC2A

    Login to see prices DOWNLOAD ID FORM
    • Lead time around 25 days
    Top rated
    • Carbide Tungsten Razor Slitter Blades, TC Slitting Knives Carbide Tungsten Razor Slitter Blades, TC Slitting Knives $32.50 – $174.00
    • High Speed Double Sided Splicing Tape High Speed Double Sided Splicing Tape $2.10 – $3.50
    • Air Operated Diaphragm Pumps, 1/2”, 3/4”, 1-1/2” Polypropylene Air Operated Diaphragm Pumps, 1/2”, 3/4”, 1-1/2” Polypropylene $22.00 – $217.00
    • Cut off Knife Set, N.C Cutters, Shear Blades, Both Serrated Edge Cut off Knife Set, N.C Cutters, Shear Blades, Both Serrated Edge $823.20 – $2,054.41
    • Width 1.6m-2.6m, Cotton Woven Corrugator Belts, Cotton & Synthetic Fiber Width 1.6m-2.6m, Cotton Woven Corrugator Belts, Cotton & Synthetic Fiber $88.00 – $102.30 /㎡
    • Ceramic Anilox Rollers, Laser Engraved Ceramic Anilox Rolls Ceramic Anilox Rollers, Laser Engraved Ceramic Anilox Rolls $2,172.00 – $2,795.00 /㎡
    • Description
    • Additional information

    How to order?

    • Enter roll working length and perimeter (Not diameter) to order as per your roll dimensions
    • After order is completed, you can send us your anilox roll drawing, or download the Identification form and send back to us.
    • If needed, we can send you drawing for typical print models for your confirmation after you have placed order.
    • For further technical assistance, please contact our tech help team.

    Ceramic anilox roll is manufactured with a plasma coating and laser engraved processes, compared to old chrome anilox roll this high performance ceramic anilox roll consistently transfers a precise amount of ink to the printing plates, achieves peak print quality, and lasts much longer as well.

    The price calculation here is based on rolls in LPI ranging from 8 to 300 and includes shaft ends, but we retain right to charge extra for rolls out of this LPI base and unusual shaft ends at $200 each or above.

    The cost-effective hard chromed anilox roll provides a broad range of line counts in Hexagon, Quad, Pyramid, Diamond, Tri-helical and custom configurations to suit your specific printing and coating applications.

    Multiple Cell Shapes

    The shape, size and depth of these cells impact how ink is transferred from the anilox roller to the print plate. After you place an order, you may contact us and share the condition and application of your roller, we will be happy to assist you in choosing a best possible solution for improved print quality as well as process efficiency.



    Typical Cell Angles

    Today new laser engraving technology allows multiple open cell designs, such as equal sided hex 60°and 30°cells have been most typically seen in corrugated box industry.



    How to determine your anilox roll application?

    Condition/Application Ink transferred requirement Recommended LPI
    Printing pressure – Higher More ink transferred Lower LPI
    Machine speed – Higher Less ink required Higher LPI
    Substrate – Higher absorption More ink required Lower LPI
    Press material – Thicker More ink required Lower LPI
    Doctor roll compared to blade Blade makes less ink transferred Lower LPI
    Full color compared to dot printing Dot requires less ink transferred Higher LPI
    Ceramic compared to Chrome roll Ceramic Higher LPI



    CorroGo #

    PGC2A

    Country of Origin (Subject to change)

    China

    Roller diameter

    available from φ50 to φ780mm

    Roller surface length

    available from 100mm to 4600mm

    Screen LPI

    available from imperial 8 to 300 LPI (3 to 118 LPC)

    Cylinder vibration

    0.015mm to 0.03mm

    Cylindricity tolerance

    0.01mm to 0.02mm

    Dynamic balance standard

    G2.5
