    Fluid Handling / Flexible Metal Hose
    Filter
    Add to wishlist
    Add to wishlist

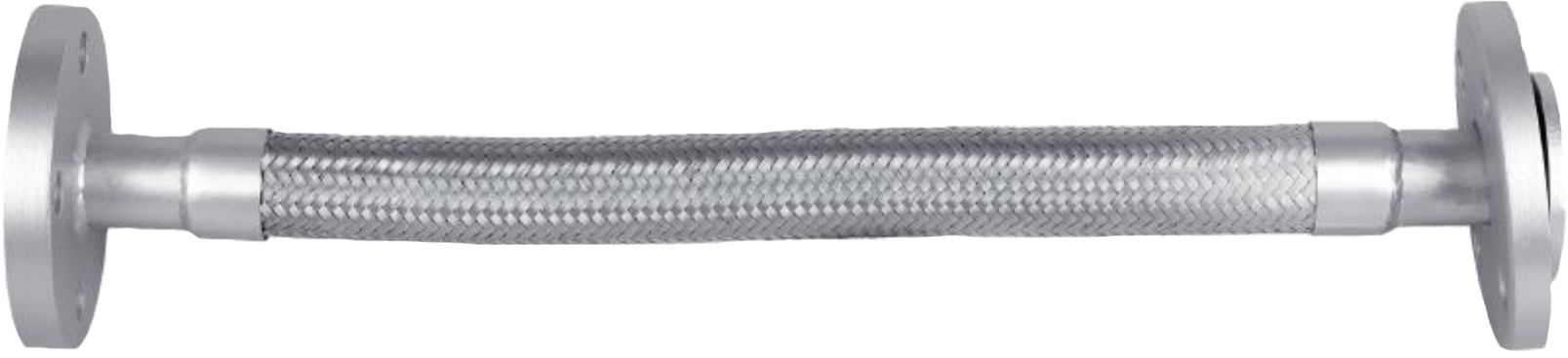

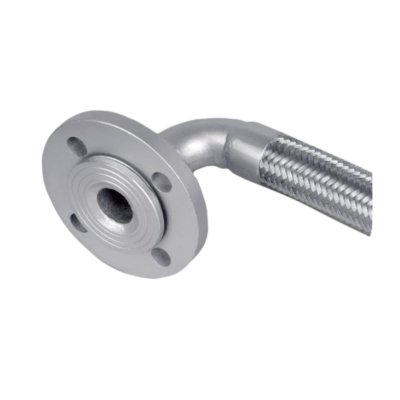

    Stainless Flexible Metal Hose, Steam Pipe

    CorroGo #: CHC1*

    • End fittings included
    • Custom versions available
    Login to see prices
    • Item ships in 5 business days
    Top rated
    • Carbide Tungsten Razor Slitter Blades, TC Slitting Knives Carbide Tungsten Razor Slitter Blades, TC Slitting Knives $32.50 – $174.00
    • High Speed Double Sided Splicing Tape High Speed Double Sided Splicing Tape $2.10 – $3.50
    • Air Operated Diaphragm Pumps, 1/2”, 3/4”, 1-1/2” Polypropylene Air Operated Diaphragm Pumps, 1/2”, 3/4”, 1-1/2” Polypropylene $22.00 – $217.00
    • Cut off Knife Set, N.C Cutters, Shear Blades, Both Serrated Edge Cut off Knife Set, N.C Cutters, Shear Blades, Both Serrated Edge $823.20 – $2,054.41
    • Width 1.6m-2.6m, Cotton Woven Corrugator Belts, Cotton & Synthetic Fiber Width 1.6m-2.6m, Cotton Woven Corrugator Belts, Cotton & Synthetic Fiber $88.00 – $102.30 /㎡
    • Ceramic Anilox Rollers, Laser Engraved Ceramic Anilox Rolls Ceramic Anilox Rollers, Laser Engraved Ceramic Anilox Rolls $2,172.00 – $2,795.00 /㎡
    • Description
    • Additional information

    How to order?

    • Choose pipe and order as per your specific needs.
    • After order is completed, please contact us for connection type if needed.

    Flexible Metal Hose is designed for use as inlet and outlet connections to rotary joints, rotating unions and other steam heating section of corrugator. It prevents pipe strains from creating tension or stress on the rotary joint, and does not restrict the rotary joint’s built in flexibility.

    A full line of flexible hose is available with different couplings, threaded, flanged or in combination. More pipe lengths out of the options here are available, we accept custom length, as well as versions for your specific needs.

    Coupling Options
    Type A

    Both ends screwed

    Type B

    One end threaded and the other screwed



    Type C

    One end flanged and the other threaded

    Type D

    One welded and one movable flanged

     Type E

    Both screwed and one at 90°

    Type F

    One welded flanged and the other movable at 90°



    Weight N/A
    CorroGo #

    CHC1*

    Country of Origin (subject to change)

    China

    Media Application

    Water, Steam, Oil, Gas and more

    Max Temperature

    ≤450℃

    Max Pressure

    ≤1.6 MPa

    Pipe Material

    SUS304 Stainless Steel or Custom

    Joint Material

    Stainless Steel or Custom

    Flange Material

    Carbon Steel or Custom

    Coupling

    Flanged, Threaded, Screwed or Combination

    Pipe Length

    Optional

    Threaded Fitting (imperial 55°)

    DN15 – 14 threads, Φ20.9 & 19.7mm
    DN20 – 14 threads, Φ26.4 & 25.2mm
    DN25 – 11 threads, Φ33.92& 31.77mm
    DN32 – 11 threads, Φ41.9 & 40.4mm

    Related products

    Air Operated Double Diaphragm Pumps QSM-CJ602
    Add to wishlist

    Air Operated Double Diaphragm Pumps QSM-CJ602

    Login to see prices
    Add to cart
    Rotary Pumps, Gear Pumps, Glue Pumps for Corrugator
    Add to wishlist

    Rotary Pumps, Gear Pumps, Glue Pumps for Corrugator

    Login to see prices
    Select options
    This product has multiple variants. The options may be chosen on the product page
    Air Operated Diaphragm Pumps, 2” Polypropylene, Cast Iron
    Add to wishlist

    Air Operated Diaphragm Pumps, 2” Polypropylene, Cast Iron

    Login to see prices
    Select options
    This product has multiple variants. The options may be chosen on the product page
    925-40A Steam Rotary Joints for Periphery Heating
    Add to wishlist

    925-40A Steam Rotary Joints for Periphery Heating

    Login to see prices
    Add to cart
    Steam Rotary Joints 25A, 32A, 40A
    Add to wishlist

    Steam Rotary Joints 25A, 32A, 40A

    Login to see prices
    Select options
    This product has multiple variants. The options may be chosen on the product page
    ARO Air Operated Diaphragm Pumps, 1/2'' Classic Non-Metallic
    Add to wishlist

    ARO Air Operated Diaphragm Pumps, 1/2” Classic Non-Metallic

    Login to see prices
    Add to cart
    RFT18F Free Float Steam Traps for 2.5m Single Facer
    Add to wishlist

    RFT18F Free Float Steam Traps for 2.5m Single Facer

    Login to see prices
    Select options
    This product has multiple variants. The options may be chosen on the product page
    TLV J3X JF3X-10 DN25 PN16 Free Float Steam Trap for 1.8m Single Facer
    Add to wishlist

    TLV J3X JF3X-10 DN25 PN16 Free Float Steam Trap

    Login to see prices
    Select options
    This product has multiple variants. The options may be chosen on the product page

    End Fitting Options

    There are three types of seals to fit most connections:
    1. Female adapter
    2. Male adapter
    3. Flat adapter
